Tow bars, carts, tackles, jacks and tools
We offer for delivery various types of ground equipment: tow bars, transport carts for the main aggregates, lifting tackles for installing and hidraulic jacks, both new and used.
Production of a specialized tool for individual aggregates and units.

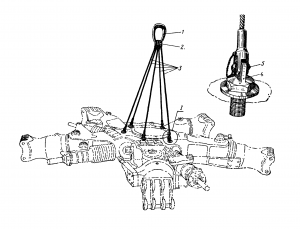

Tackle for lifting the main rotor hub 8АТ-9921-00
8AT-9921-00 Tackle set is used for lifting (moving) of the main rotor hub of the Mil Mi series helicopter using a crane or other lifting machinery. The set consists of five steel cables with diameter 5mm with fittings for securing and safe manipulation of the main rotor hub.

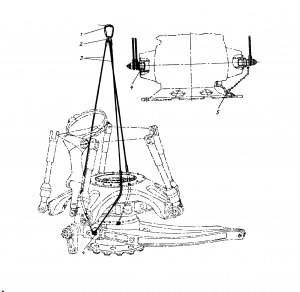

Tackle for lifting the swash plate 8АТ-9920-00
8AT-9920-00 tackle is used for lifting of the swash plate of the Mi series helicopters by using a crane or other lifting machinery. The set consists of three steel cables with diameter 5mm. Each of the cables is connected to the common ring via a fitted shackle with a bolt. The common ring is fitted in the lifting hook.
| Load capacity | 110 kg |
| Weight | 1,46 kg |

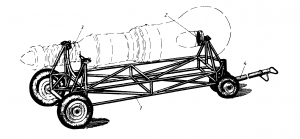

Engine Cart 8AT-9802-00
Cart 8AT-9802-00 is used to transporting and preliminary installation of TV2-117 engines for the Mi Series helicopters.
| Length with guide | 4 m |
| Base | 2280 mm |
| Distance between wheels | 980 mm |
| Weight | 81,19 kg |

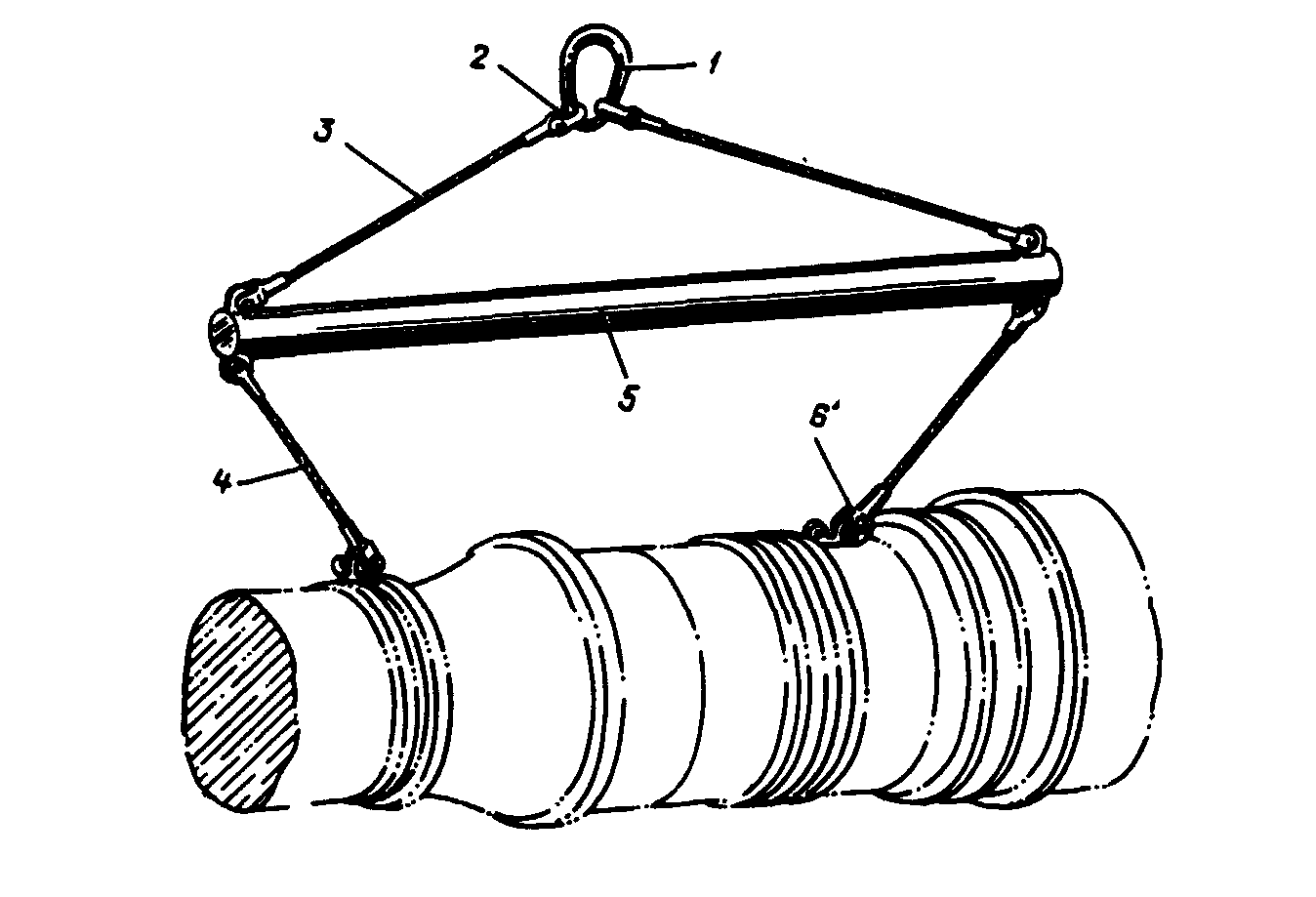

Traverse for lifting engine 8АТ-9908-00
Traverse 8AT-9908-00 is designed for lifting the engine with the help of a crane or other lifting device. Load capacity 350 kg. Weight 2.68 kg.

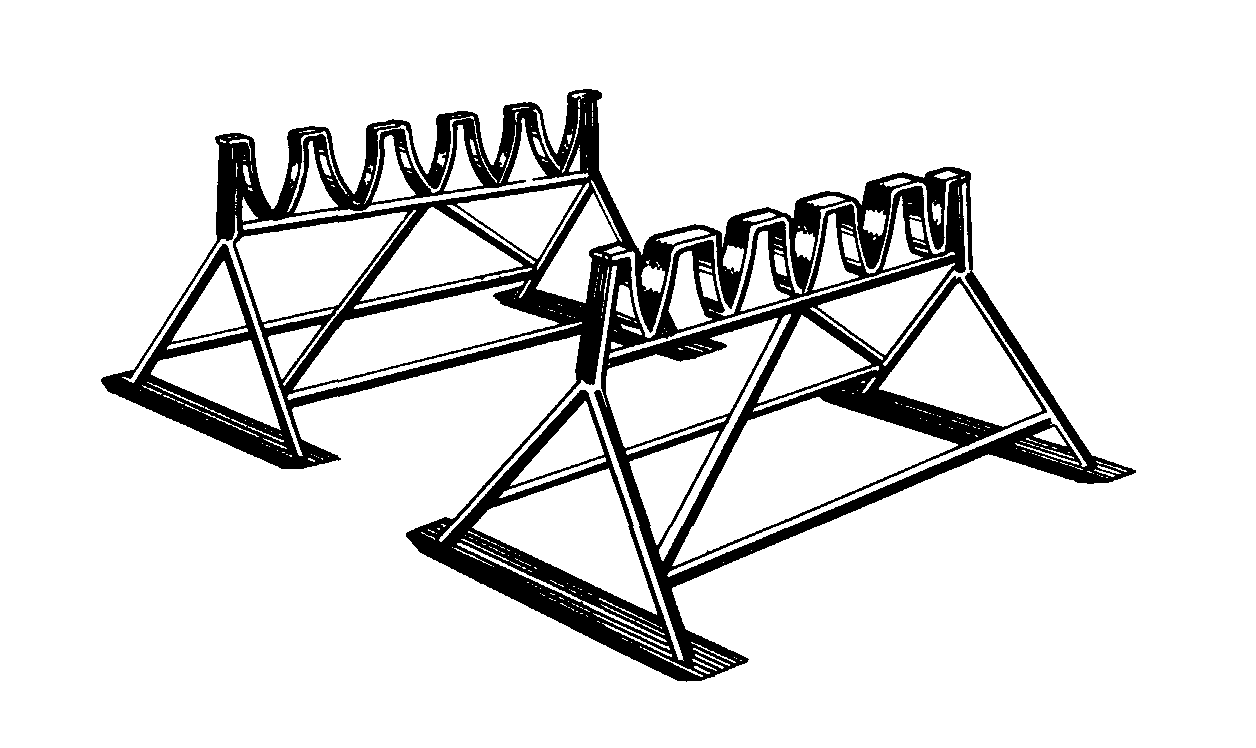

Stand for main rotor blades 8АТ-9915-00
Stand 8АТ-9915-00 is intended for storage of one set of main rotor blades on the ground. The set consists of two stands. Each rack has its own steel pipe truss with a diameter of 30x28mm. A bed for five blades is welded to the truss, with a contour corresponding to the profile of the blade.
Dimensions of one stand 1220x585x735 mm.
Weight of the set of stands 26.64 kg.
Tow bar 8АТ-9800-00
8AT-9800-00 tow bar is used for towing of the Mil Mi series helicopters by a vehicle within the airfield, on asphalt, concrete and dirt paths.
| Lenght of the tow bar | 4060 mm |
|
Maximum pulling effort (acceleration) |
4000±200 kg |
| Weight | 30,2 kg |
Main rotor blades transport cart 8AT-9801-00
8AT-9801-00 cart is used for transporting the main rotor blades of Mil Mi series helicopters within the airfield and can be used as a blade stand during the exchange of the helicopter main rotor blades.
| Number of beds for blades | 5 |
| Length with guide | 11,5 m |
| Weight | 189,62 kg |
| Distance between rear wheels | 1120 mm |
| Distance between the front wheels | 210 mm |

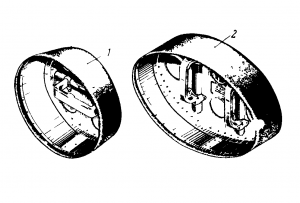

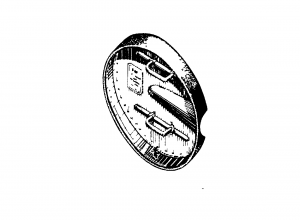

8АТ-9110-00 and 8АТ-9109-00 covers
8AT-9110-00 cover is used for preserving the interior of the rotor from the elements during the stay of the helicopter on the ground. 8AT-9109-00 cover is used for preserving the interior of the engine from the elements and the accidental intake of foreign objects during the stay of the helicopter on the ground. It is placed on the engine exhaust.

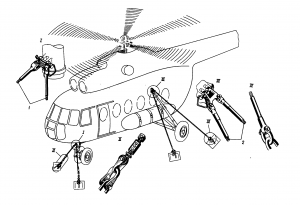

8А-9911-00 Helicopter tackle
8A-9911-00 helicopter tackle is used for securing the helicopter to a specially equipped landing pad during tests of the engines in all work modes, as well as on ground tests.
Total weight with all cables 61.25 kg.

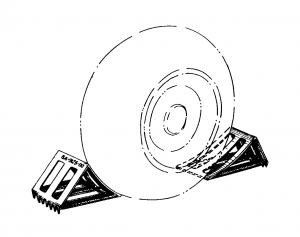

Metal chock 8А-9126-00
8A-9126-00 metal chock is used for securing the helicopter from moving when landed. Checks are placed on both sides of the main wheels. The metal teeth of the chock allow it to dig in and the the contour of the chock corresponds to the radius of the wheel, helping to secure it in place. The chocks are aluminium cast.
Size 300х170х210 mm.
The set consists of four chocks.
Weight of the set 4,80 кg.

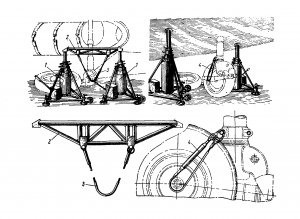

Device for installing/uninstalling the helicopter wheels 8AT-9905-100
8AT-9505-100 is a device used for lifting the helicopter during installation of the helicopter nose and base wheels.

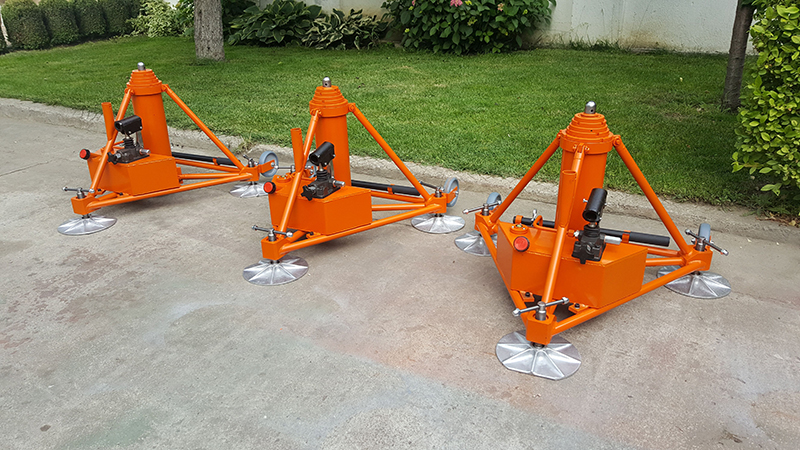

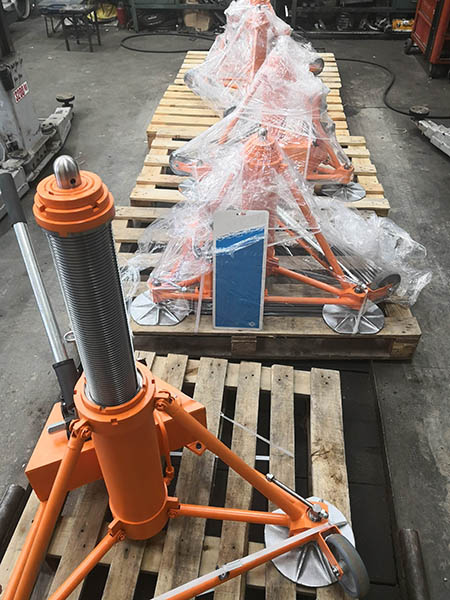

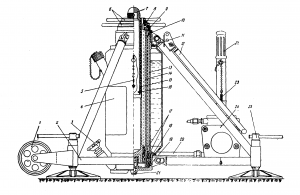

Hydraulic jack 8AT-9907-00
8AT-9907-00 Hydraulic jack is used to lifting helicopters during installation and uninstalling the shock absorbers of the chassis, their refilling, helicopter leveling and others. They are also used during other jobs, requiring the lifting of the helicopter. One set of jacks consists of four hydraulic jacks.
| Lift capacity | 5000 kg. |
| Minimal height | 550 mm |
| Maximal height | 1440 mm |
| Hydraulic travel | 690 mm |
| Supports travel | 200 mm |
| Working pressure | 130 kg/cm² |
| Working fluid | АМГ-10 |
| Volume of the working fluid | 5,5л. |
| Weight | 38 kg. |
